Installing a new clutch is an exercise in frustration, mainly because you have to manhandle a giant transmission underneath your car. The last thing you want to do is have to start all over because the clutch plate slipped out of alignment and won't engage with the input shaft. Save yourself some time and effort and use a clutch alignment tool to make sure this does not happen to you. The tools are very simple, made from injection moulded plastic or nylon, you need the tool that matches your transmission. This is a matter of knowing the spline count on the input shaft. If the splines don't line up, it won't work. Do not try to fudge it with a tool that does not fully engage the spines. If your clutch alignment tool does not fit the pilot bearing/bushing, it is the wrong one, you need to get the correct one. On the back of the engine, the flywheel bolts to the crank. Inside the crank is a recess for the bearing. The tip of the clutch alignment tool locks into the bearing, keeping your clutch in place. First, insert the tool into the clutch plate. Make sure the clutch is facing the correct direction. The tool should stick all the way through the spines on the plate. Then place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing in the centre of the crankshaft. Push the clutch tight to the flywheel. The tool goes into the clutch plate, and then the tool is installed into the bearing on the flywheel. It should not move around at all. With the clutch on the flywheel, install the pressure plate to the flywheel and start the bolts. Wiggle the alignment tool to make sure it is fully engaged and seated in the pilot bushing/bearing. Tighten the pressure plate bolts in a criss-cross pattern and then torque to spec. The clutch alignment tool stays in the clutch until you are ready to install the transmission. While the pressure place should hold the clutch from moving, don't take the risk of pulling the tool out too soon. Once the transmission is ready to install, pop the tool out, and slide the transmission into place. Every application has a different clutch tool. These three tools look similar, and may even mesh together, but they are all different.
Features and Specifications

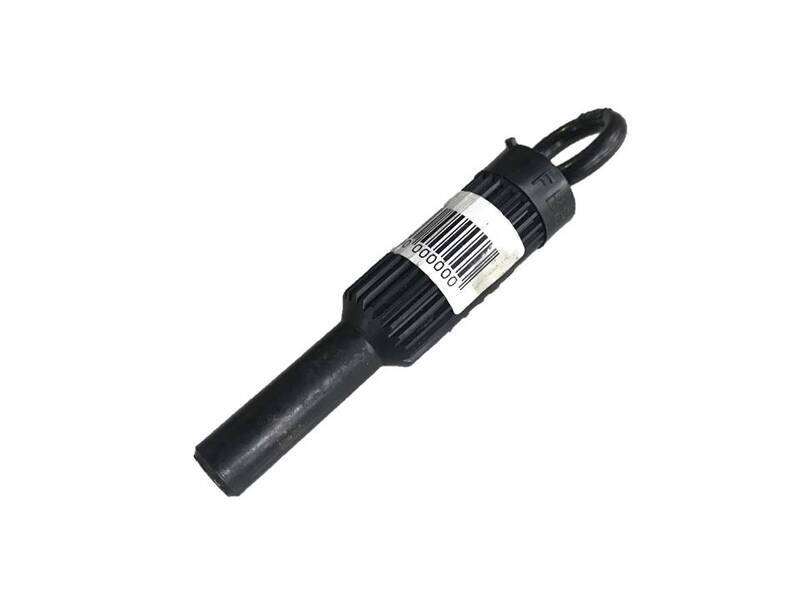

Clutch Industries (CI) Clutch Alignment Tool Mandatory use on Clutch Installs Ensure optimum clutch life and performance
Dual Mass Flywheel: Not Included
Concentric Slave Cylinder: Not Included
Fitment
Ford Courier 2.6 Ltr PC, 1/86-12/92 1986-1992
Ford Courier 2.6 Ltr EFI, G6(F) PD, 5/96-2/99 1996-1999
Ford Courier 2.6 Ltr EFI, G6 PE, 2/99-5/00 1999-2000
Ford Courier 2.5 Ltr TDI, WLAT PE, 2/99-11/02 1999-2002
Ford Courier 2.6 Ltr EFI, G6 PE, 6/00-10/02 2000-2002
Ford Courier 2.5 Ltr TDI, WLAT PG, 11/02-7/04 2002-2004
Ford Courier 2.6 Ltr EFI, G6 PG, 11/02-7/04 2002-2004
Ford Courier 2.5 Ltr TDI, WLAT PH, 8/04-12/06 2004-2006
Ford Courier 2.6 Ltr EFI, G6 PH, 8/04-12/06 2004-2006
Ford Econovan 2.2 Ltr Diesel, R2 3/88- 1988
Ford Econovan 2.0 Ltr, F8 JG LWB, 5 Speed, 2/97-10/99 1997-1999
Ford Econovan 2.0 Ltr, F8 JH LWB, 5 Speed, 10/99-1/03 1999-2003
Ford Econovan 2.0 Ltr, F8 LWB, 5 Speed, - 1960
Ford Econovan 2.0 Ltr LWB, 3/88-2/96 1988-1996
Ford Explorer 4.0 Ltr, V6, 119kw 1/96-6/99 1996-1999
Ford Explorer 4.0 Ltr, V6, 119kw UQ, 6/99-1/00 1999-2000
Ford Explorer 4.0 Ltr, V6, 119kw US, 1/00-10/01 2000-2001
Ford Focus 2.0 Ltr MPFI, AODA, 107kw LS, 5 Speed, 5/05-6/07 2005-2007
Ford Focus 2.0 Ltr MPFI, AODB, 107kw LS, 5 Speed, 5/05-6/07 2005-2007
Ford Focus 2.0 Ltr MPFI, AODB, 107kw LT, 5 Speed, 7/07-1/08 2007-2008
Ford Focus 2.0 Ltr MPFI, AODA, 107kw LT, 5 Speed, 7/07-1/08 2007-2008
Ford Laser 1.8 Ltr DOHC EFI, BPD(N) KJ, 10/94-8/95 1994-1995
Ford Laser 1.8 Ltr DOHC EFI, BPD(N) KJ Liata, 10/94-8/95 1994-1995
Ford Mondeo 2.5 Ltr Quadcam, SEA V6 HE ST24, 2/00-4/01 2000-2001
Ford Raider 2.6 Ltr EFI, 92kw UV, 4WD, 1/91-7/97 1991-1997
Ford Raider 2.6 Ltr EFI, G6(F), 92kw UV, 5 Speed 4WD, 8/91-11/96 1991-1996
Ford Ranger 3.0 Ltr, V6, 115kw 11/94-12/05 1994-2005
Ford Ranger 4.0 Ltr, V6, 119kw 1/98-12/00 1998-2000
Ford Spectron 2.0 Ltr, FE SGME, 3/88-12/90 1988-1990
Ford Spectron 2.0 Ltr, FE SGMW, 3/88-12/88 1988-1988
Ford Telstar 2.2 Ltr Turbo AT, 10/87-10/89 1987-1989
Ford Telstar 2.2 Ltr Turbo AV, 1/90-1/92 1990-1992
Ford Transit 2.4 Ltr TDI, 101kw VJ, 6 Speed, 5/04-10/06 2004-2006
Ford Transit 2.4 Ltr TDI, 103kw VM, 6 Speed, 10/06- 2006
Mazda 626 2.2 Ltr Turbo GD10, 1/87-12/91 1987-1991
Mazda 929 3.0 Ltr, V6 JE HC, 1/92-12/96 1992-1996
Mazda 929 3.0 Ltr, V6 HC10E, 1/87-12/92 1987-1992
Mazda 929 3.0 Ltr, V6 JE HD, 1/92-12/96 1992-1996
Mazda 323 Astina - Prot‚g‚ 1.8 Ltr 16V, DOHC BA11P, 7/94-8/95 1994-1995
Mazda 323 Astina - Prot‚g‚ 1.8 Ltr 16V, DOHC BH, 7/94-8/95 1994-1995
Mazda B Series 2.6 Ltr EFI Petrol, 66 B2600 FY065, 4/96-11/06 1996-2006
Mazda B2500 2.5 Ltr TDI, WL-T, 86kw 5 Speed, 2/99-11/06 1999-2006
Mazda B2600 2.6 Ltr, 73kw Cab Chassis & Ute, incl 4WD, 5 Speed, 3/87-11/91 1987-1991
Mazda B2600 2.6 Ltr EFI, AM, 92kw Cab Chassis & Ute, incl 4WD, 5 Speed, 12/90-11/06 1990-2006
Mazda B4000 4.0 Ltr, V6 G6 1/96-12/04 1996-2004
Mazda Bounty 2.5 Ltr TDI, WL-T SDX, 1/00- 2000
Mazda E2000 2.0 Ltr, FE SDEA incl 4WD, 3/88-7/06 1988-2006
Mazda E2000 2.0 Ltr, FE SRE9 incl 4WD, 3/88-7/06 1988-2006
Mazda E2000 2.0 Ltr, FE SREA incl 4WD, 3/88-7/06 1988-2006
Mazda E2000 2.0 Ltr, FE SSE8 incl 4WD, 3/88-7/06 1988-2006
Mazda E2000 2.0 Ltr Diesel, RF Van & Wagon, SSF8V, 5/88-12/94 1988-1994
Mazda E2000 2.0 Ltr Diesel, RF Van & Wagon, SSF8W, 5/88- 1988
Mazda E2200 2.2 Ltr Diesel, R2 Van & Cab Chassis, SD29M incl 4WD, 1/88-8/97 1988-1997
Mazda E2200 2.2 Ltr Diesel, R2 Van & Cab Chassis, SD2AT-29T, 1/88-8/97 1988-1997
Mazda E2200 2.2 Ltr Diesel, R2 Van & Cab Chassis, SR2AM incl 4WD, 1/88-8/97 1988-1997
Mazda E2200 2.2 Ltr Diesel, R2 Van & Cab Chassis, SR2AV-29V, 1/88-11/95 1988-1995
Mazda E2200 2.2 Ltr Diesel, R2 Van & Cab Chassis, SR2AV-29V, 1/88-8/97 1988-1997
Mazda E2200 2.2 Ltr Diesel, R2 Wagon, SS28R incl 4WD, 1/88-8/97 1988-1997
Mazda E2200 2.2 Ltr Diesel, R2 Wagon, SSF8W incl 4WD, 1/88-8/97 1988-1997
Mazda E2500 2.5 Ltr TDI, WL-T 2/99-4/03 1999-2003
Mazda MPV 3.0 Ltr, V6 JE LVEW, 1/91-12/95 1991-1995
Mazda MX6 2.2 Ltr Turbo, F22 GD, 1/87-12/91 1987-1991
Mazda Proceed 2.6 Ltr, G6, 89kw 1/90-1/99 1990-1999
Mazda T2600 2.6 Ltr Cab Chassis, 4/85-12/88 1985-1988
Generic image shown, you will be sent the correct product that you have purchased.
